Are you looking to improve compactness, reduce weight, or allow more flexible movement?

FFC can provide a high-performance alternative to traditional round wires, especially in systems with repeated movements or limited space.

To meet these constraints, Nicomatic offers Crimpflex®, a solderless mechanical crimping technology designed to deliver reliable and durable interconnection between FFC, wires, and printed circuit boards.




A versatile solution for different types of connections

Crimpflex® addresses a wide range of interconnection needs:

- Flex-to-wire: connection between a flat cable or a printed circuit and wires

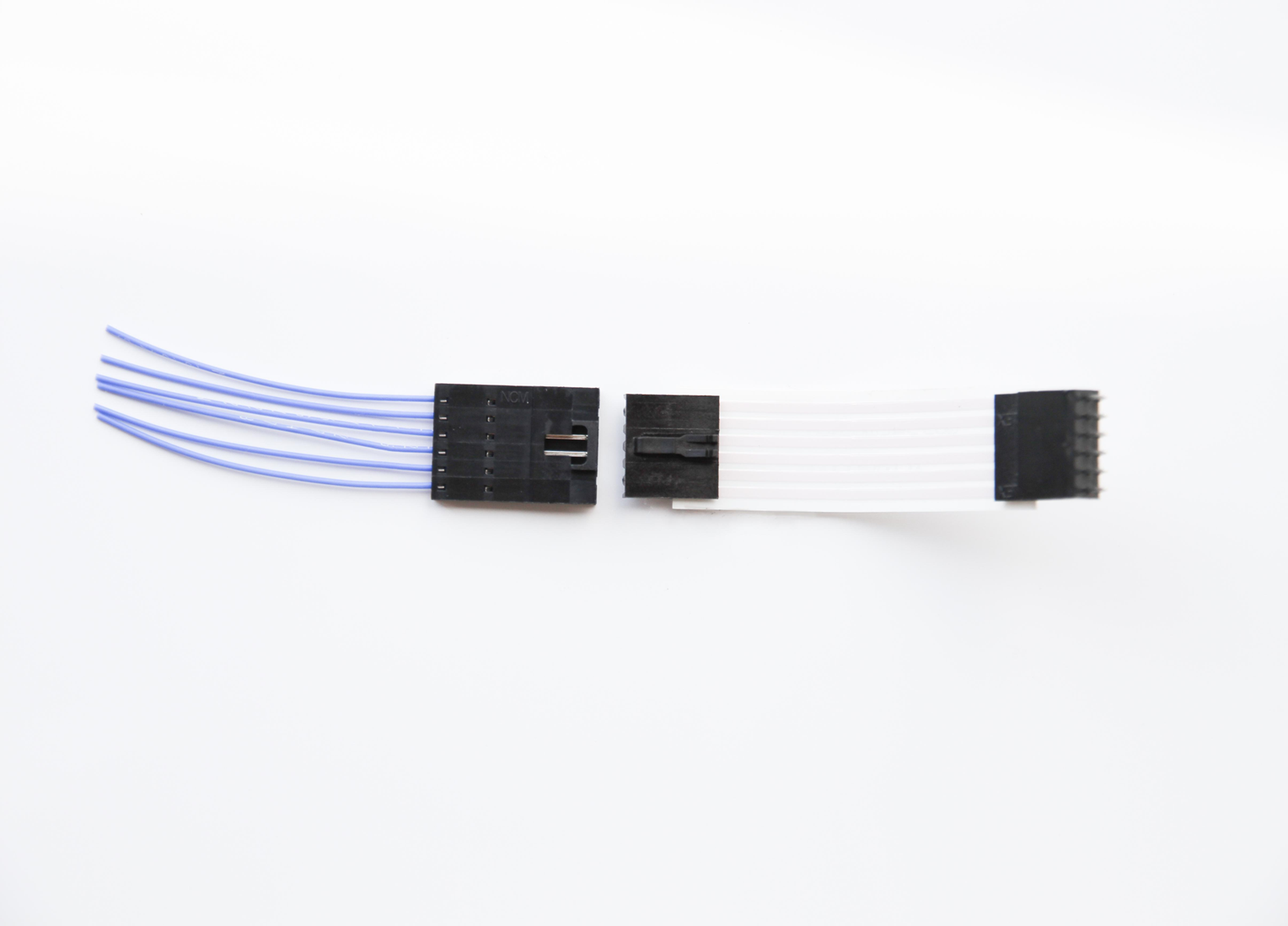

   Flex to Wire


- Flex-to-flex: direct connection between two flat cables or between a flat cable and a printed circuit

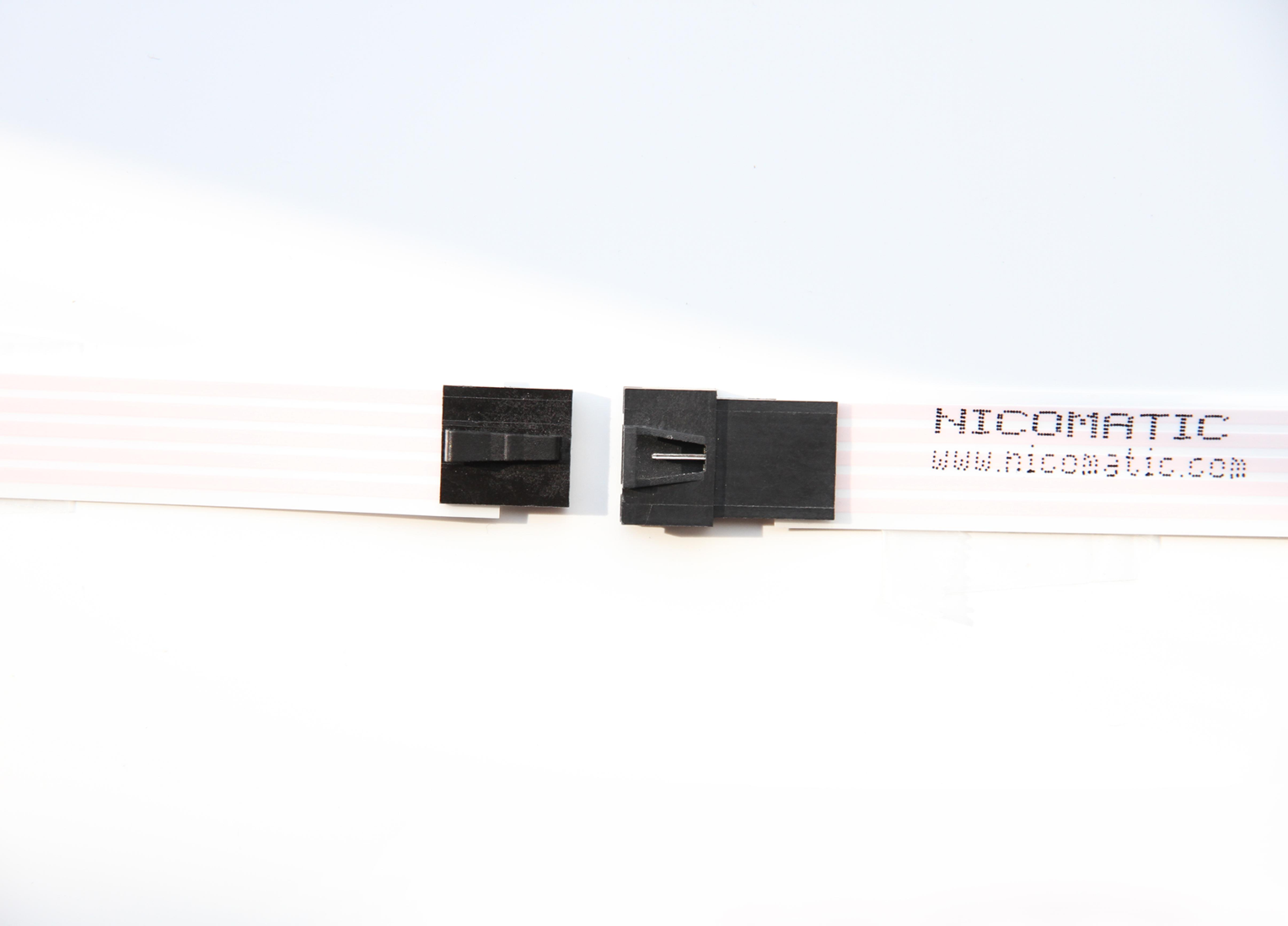

 Flex to Flex


- Flex-to-PCB: connection between a flat cable or a printed circuit and a board

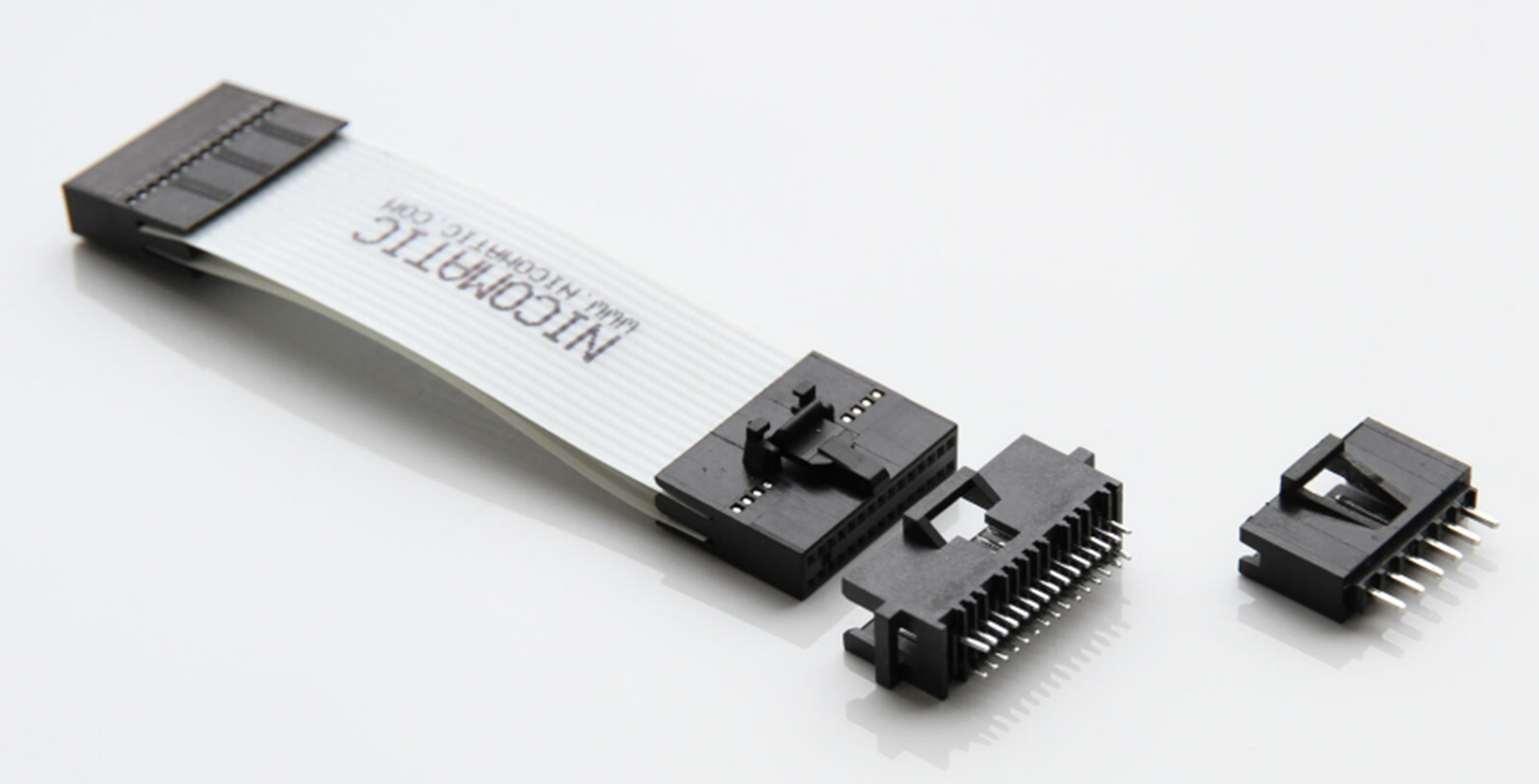

Flex to PCB

- Wire-to-wire: connection between two round cables

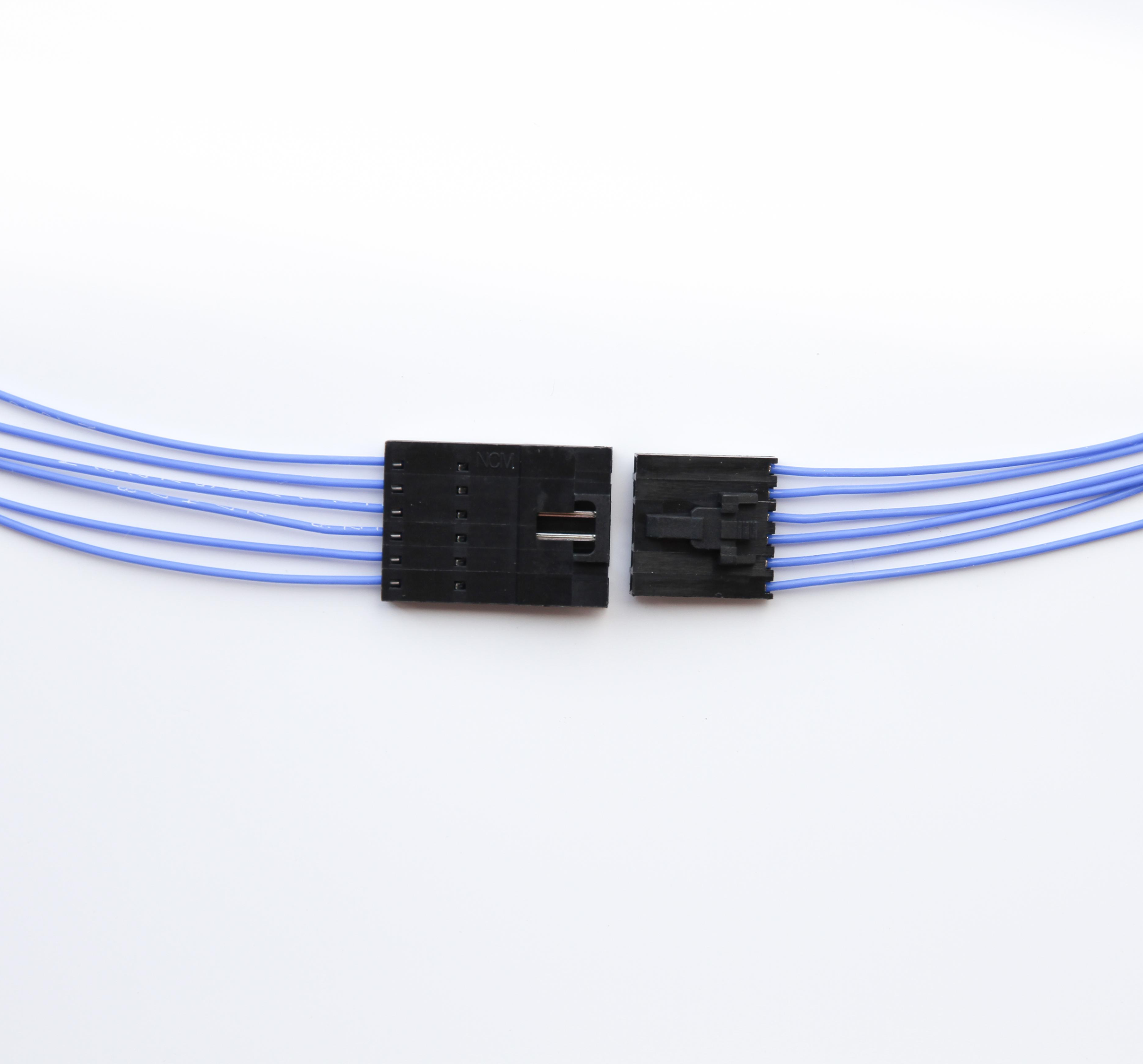

Wire to Wire


This flexibility makes it a smart choice for compact and industrial applications.




A repeatable crimping process with no thermal stress

Crimpflex® is based on a cold crimping process, with no added material and no soldering required:

- Reduces risks related to thermal stress
- Ensures repeatability and mechanical strength suitable for industrial environments
- Lowers the risk of disconnections often observed with manual insertion solutions (ZIF/LIF)




A modular interconnect system designed for easy integration

The Crimpflex® architecture provides multiple options to adapt the level of security to your project needs:

- Polarized housings (walled headers)
- Locking latches available to prevent unintentional disconnections
- Compatible with 1.27 mm and 2.54 mm pitches, along with various configurations




A production-friendly solution with a strong performance-to-price ratio

Crimpflex® is designed to fit seamlessly into your processes, from prototyping to full production:

- Can be used with a manual tool for small quantities

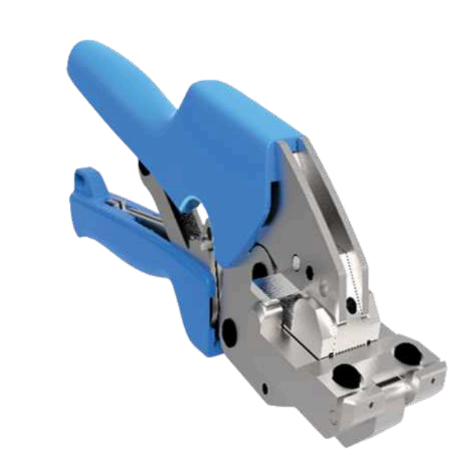

Manual tool

- Crimping press available for industrial environments

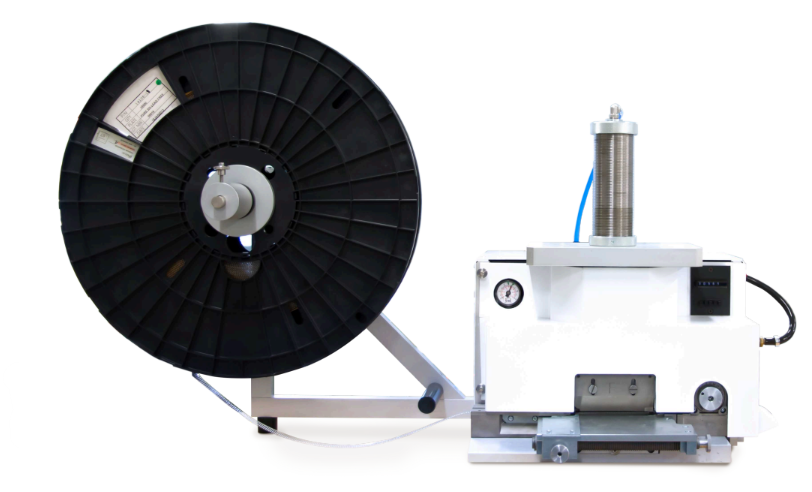

Crimping press

- Option to receive pre-crimped subassemblies, ready to integrate

Its performance-to-price ratio makes it an accessible solution for applications with moderate environmental constraints.




Conclusion

Crimpflex® is a simple and efficient crimping technology tailored to flat cable interconnection needs.

It ensures reliable, repeatable, and easy-to-integrate connections for industrial environments, while offering customization options based on your desired level of security.
